假設我有一組(x=times,y=observation)有多個時間間隔的數據。無論數據趨勢是什么，我們都假設它是線性的。在時間間隔內，有一個衰減，使數據偏離純線性趨勢，直到再次開始觀察并恢復線性趨勢。時間上有多個間隔，但在這個例子中，我只報告了最短的快照來說明問題。時間間隔是（正）線性趨勢之間沒有可用觀察值的時間，因此連續之間的差異x=times（遠）大于平均值。我想將衰減建模為函數 ( y_decay = C -D*x)的一部分from scipy.optimize import curve_fitimport matplotlib.pyplot as pltdef f(x, A, B, C, D): line = A*x + B if ((x>=1) & (x<=3) | (x>=5) & (x<=9) | (x>=23) & (x<=25)) else C-D*x return linex=[1,2,3, 12,13,14, 23,24,25]y=[2,4,6, 5, 7, 9, 8, 10,12]popt, pcov = curve_fit(f, x, y) figure = plt.figure(figsize=(5.15, 5.15))figure.clf()plot = plt.subplot(111)ax1 = plt.gca()plot.scatter(x,y)plt.show()如何將decay變量建模為函數的一部分并獲得其最佳擬合值？
2 回答
不負相思意
TA貢獻1777條經驗 獲得超10個贊
在完全周期性的情況下，我會做這樣的事情：
import matplotlib.pyplot as plt
import numpy as np
from scipy.optimize import leastsq
def data_func( x, x0, a, bc, off, p1, p2):
"""
fit function that uses modulus to get periodicity
two linear functions are combines piecewise by boxing them
using the heaviside function with the periodic input
over all slope is added.
Note that the "decay" part maybe positive with this solution.
"""
P1 = abs(p1)
P2 = abs(p2)
X = x - x0
P= P1 + P2
mod = X % P
y0 = a * P1
beta = y0 * P / P2
slope = y0 / P2
box1 = np.heaviside( +np.abs( ( X - P1 / 2. ) % P - 0.5 * P ) - 0.5 * P2, .5 )
box2 = np.heaviside( -np.abs( ( X - P1 / 2. ) % P - 0.5 * P ) + 0.5 * P2, .5 )
out = a * mod * box1
out += (beta - slope * mod )* box2
out += off + bc * X
return out
def residuals( params, xl ,yl ):
x0, a, bc, off, p1, p2 = params
diff = np.fromiter( ( y - data_func( x, x0, a, bc, off, p1, p2 ) for x, y in zip( xl, yl ) ), np.float )
return diff
theOff = 0.7
theP1= 1.8869
theP2 = 5.21163
theP = theP1 + theP2
xdata = np.linspace(-1, 26, 51 )
xdata = np.fromiter( ( x for x in xdata if (x-theOff)%theP <= theP1 ),np.float )
ydata = np.fromiter( ( data_func( x, theOff, .6, .1, 17, theP1, theP2) for x in xdata ),np.float )
tl = np.linspace(-1, 26, 150 )
yl = np.fromiter( ( data_func( x, theOff, .6, .1, 17, theP1, theP2) for x in tl ),np.float )
guess= [0, 0.55, .1, 16 , 2, 5 ]
sol, err = leastsq( residuals, guess, args = ( xdata, ydata ) )
print sol
### getting the real slopes out of the data
s1 = sol[1]+ sol[2]
s2 = - sol[1] * sol[4] / sol[5] + sol[2]
print "real slope1 = {}".format( s1 )
print "real slope2 = {}".format( s2 )
fit = np.fromiter( ( data_func( x, *sol ) for x in tl ),np.float )
fig = plt.figure()
ax = fig.add_subplot( 1, 1, 1 )
### original data
ax.plot( tl, yl, ls='--')
ax.plot( xdata, ydata, ls='', marker='+')
### fit
ax.plot( tl, fit )
### check the slopes
short = np.linspace(0, 3, 3)
ax.plot( short, [ 17 + s1 * s for s in short ] )
short = np.linspace(3, 10, 3)
ax.plot( short, [ 18 + s2 * s for s in short ] )
ax.grid()
plt.show()
這使：
>> [ 0.39352332 0.59149625 0.10850375 16.78546632 1.85009228 5.35049099]
>> real slope1 = 0.7
>> real slope2 = -0.0960237685357

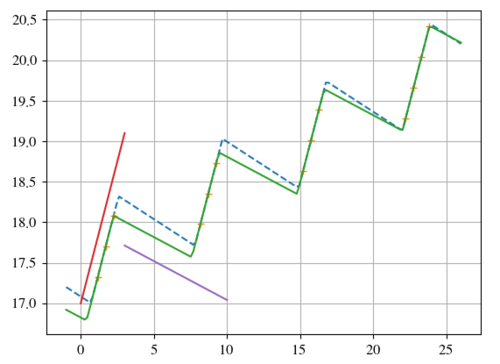

和
自然地，間隙中缺乏信息會導致那里的斜率相當糟糕。結果，在周期性中存在相應的誤差。如果知道這一點，那么準確度當然會提高。
您需要對起始參數進行合理的猜測！
隔江千里
TA貢獻1906條經驗 獲得超10個贊
當假設所有數據都具有相同的斜率m并且所有“衰減”斜率時，那將是我的 AnsatzD
import matplotlib.pyplot as plt ### only for plotting; not important for the OP
import numpy as np ### for easy data manipulation
from scipy.optimize import leastsq ### one of many possibilities for optimization
def generic_data( m, D, n ): ### just generating data; not important for OP
alpha0 = 0
timel = [ 0 ] ### to avoid errer, remove at the end
dl = list()
for gaps in range( n + 1 ):
for pnts in range( 3 + np.random.randint( 2 ) ):
timel.append ( timel[-1] + 0.5 + np.random.rand() )
dl.append( m * timel[ -1 ] + alpha0 )
###now the gap
dt = 2. + 2 * np.random.rand()
timel.append ( timel[-1] + dt )
dl.append( dl[-1] - D * dt )
alpha0 = dl[-1] - m * timel[-1]
del timel[0]
### remove jump of last gap
del timel[-1]
del dl[-1]
dl = np.fromiter( ( y + np.random.normal( scale=0.1 ) for y in dl ), np.float )
return np.array( timel ), dl
def split_into_blocks( tl, dl ):
"""
identifying the data blocks by detecting positions of negative slope.
first subtract a shifted version of the data from itself
find the negatives and get their positions
get sub-lists based on this positins
"""
mask = np.where( dl[1::] - dl[:-1:] < 0, 1, 0 )
where = np.argwhere( mask )
where = where.reshape( 1, len( where ) )[0]
where = np.append( where, len( dl ) - 1 )
where = np.insert( where, 0, -1 )
tll = list()
dll = list()
for s, e in zip( where[ :-1:], where[ 1:: ] ):
dll.append( dl[ s + 1 : e + 1 ] )
tll.append( tl[ s + 1 : e + 1 ] )
return np.array( tll ), np.array( dll )
def residuals( params, tblocks, dblocks ):
"""
typical residual function to be called by leastsq
"""
### split parameters
nob = len( tblocks )
m = params[0] ### all data with same slope
D = params[1] ### all decay with same slope
alphal = params[2:2+nob] ### off sets differ
betal = params[-nob+1::]
out = list()
### evaluate diefference between data and test function
for i, (tl, dl) in enumerate( zip(tblocks, dblocks ) ):
diff = [ d - ( m * t + alphal[i] ) for t, d in zip( tl, dl ) ]
out= out + diff
### evaluate differences for the gapfunction; this could be done
### completely independent, but I do it here to have all in one shot.
for j in range( nob -1 ):
out.append( dblocks[ j][-1] - ( betal[j] + D * tblocks[j][-1] ) ) ###left point gap
out.append( dblocks[ j+1][0] - ( betal[j] + D * tblocks[j+1][0] ) ) ###right point gap
return out
### create generic data
tl, dl = generic_data( 1.3, .3, 3 )
tll, dll = split_into_blocks( tl, dl )
### and fit
nob = len(dll)
m0 = +1.0
D0 = -0.1
guess = [m0, D0 ]+ nob * [-3] + ( nob - 1 ) * [ +4 ]
sol, err = leastsq( residuals, x0=guess, args=( tll, dll ) )
mf = sol[0]
Df = sol[1]
print mf, Df
alphal = sol[2:2+nob]
betal = sol[-nob+1::]
### ... and plot
fig = plt.figure()
ax = fig.add_subplot( 1, 1, 1 )
###original data
ax.plot( tl, dl, ls='', marker='o')
###identify blocks
for a,b in zip( tll, dll ):
ax.plot( a, b, ls='', marker='x')
###fit results
for j in range(nob):
tloc = np.linspace( tll[j][0] - 0.3, tll[j][-1] + 0.3 , 3 )
ax.plot( tloc, [ mf * t + alphal[j] for t in tloc ] )
for j in range(nob - 1):
tloc = np.linspace( tll[j][-1] - 0.3, tll[j+1][0] + 0.3 , 3 )
ax.plot( tloc, [ Df * t +betal[j] for t in tloc ] )
plt.show()
這導致
>> 1.2864142170851447 -0.2818180721270913

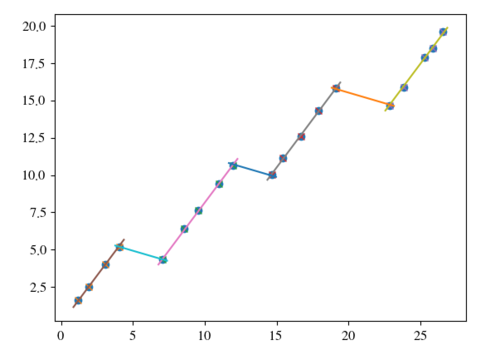

和
然而，該模型可能要求衰減線不與數據范圍內的數據線相交。這使得額外的擺弄成為必要，因為我們需要檢查某種類型的邊界。另一方面，可以只擬合數據并尋找具有滿足前面提到的邊界的最小可能斜率的衰減曲線。因此，在這種情況下，我會D從殘差中刪除擬合部分，然后再計算它。
