Android Camera调用流程
http://blog.csdn.net/lushengchu_luis/article/details/11033095
1、Packages/apps/到framework 打开Camera
./packages/apps/Camera/src/com/android/camera/Camera.java
进来第一个肯定是onCreate(Bundle icicle) {
这里是开始了一个Camera的线程
//start camera opening processmCameraStartUpThread = new CameraStartUpThread(); CameraStarUpThread是一个类
/// M: open camera process functions @{
private class CameraStartUpThread extends Thread {
//上面的注释就写着open camera process functions 打开相机进程的函数
Util.openCamera(Camera.this, isPIPMode(getCurrentMode())); //这一句就是用Util这个类来打开相机进程了./packages/apps/Camera/src/com/android/camera/Util.java//这里面还有打开摄像头的函数openCamerapublic static void openCamera(Activity activity, boolean isPIP) throws CameraHardwareException, CameraDisabledException {
Log.i(TAG,"openCamera begin isPIP = " + isPIP); // Check if device policy has disabled the camera.
DevicePolicyManager dpm = (DevicePolicyManager) activity.getSystemService(
Context.DEVICE_POLICY_SERVICE); if (dpm.getCameraDisabled(null)) { throw new CameraDisabledException();
} if (isPIP) {
retryOpen(activity, OPEN_RETRY_COUNT, CameraHolder.instance().getBackCameraId());
retryOpen(activity, OPEN_RETRY_COUNT, CameraHolder.instance().getFrontCameraId());
} else { int currentCameraId = ((com.android.camera.Camera)activity).getCameraId();
retryOpen(activity, OPEN_RETRY_COUNT, currentCameraId);
}
Log.i(TAG,"openCamera end");
} //这里面又会调用一个retryOpen函数
private static CameraManager.CameraProxy retryOpen(Activity activity, int count, int cameraId)
//这个函数最终会调用open函数来打开摄像头 try { if (activity instanceof ActivityBase) {
CameraProxy cameraProxy = CameraHolder.instance().open(cameraId); return cameraProxy;
} else { return CameraHolder.instance().open(cameraId);
}
........
}２. 这里面的CameraHolder.instance().open调用了下面的open函数
./packages/apps/Camera/src/com/android/camera/CameraHolder.java
public CameraProxy open(int cameraId) throws CameraHardwareException {
Log.i(TAG, "CameraHolder open cameraId = " + cameraId);
assertError(cameraId != UNKONW_ID); if (mMockCameraInfo == null) { //这里又有一个open函数
return getCameraProxyWrapper(cameraId).open();
} else { if (mMockCamera == null) { throw new RuntimeException();
}
getCameraProxyWrapper(cameraId).insertMockCameraProxy(mMockCamera[cameraId]); return mMockCamera[cameraId];
}
} public synchronized CameraProxy open() throws CameraHardwareException {
Log.i(TAG, "CameraProxyWrapper open mCameraOpened = " + mCameraOpened + " mCameraId = " + mCameraId);
assertError(!mCameraOpened); if (mCameraProxy == null) { try {
Log.i(TAG, "open camera " + mCameraId);
mCameraProxy = mCameraManager.cameraOpen(mCameraId); //现在又跑到一个mCameraManager.cameraOpen里面来了//看一下下面这个函数，这个函数就是app里面最终调用到framework里面的接口// Open camera synchronously. This method is invoked in the context of a
// background thread.
CameraProxy cameraOpen(int cameraId) { // Cannot open camera in mCameraHandler, otherwise all camera events
// will be routed to mCameraHandler looper, which in turn will call
// event handler like Camera.onFaceDetection, which in turn will modify
// UI and cause exception like this:
// CalledFromWrongThreadException: Only the original thread that created
// a view hierarchy can touch its views.
MMProfileManager.startProfileCameraOpen();
mCamera = FrameworksClassFactory.openCamera(cameraId);
MMProfileManager.stopProfileCameraOpen(); if (mCamera != null) {
mParametersIsDirty = true; if (mParamsToSet == null) {
mParamsToSet = mCamera.getParameters();
}
mCameraProxy = new CameraProxy(); return mCameraProxy;
} else { return null;
} //./packages/apps/Camera/src/com/mediatek/camera/FrameworksClassFactory.java
//代码的路径 camera.open这里就是跑到framework里面去了
public static ICamera openCamera(int cameraId) { if (MOCK_CAMERA) { return MockCamera.open(cameraId);
} else {
Camera camera = Camera.open(cameraId); if (null == camera) {
Log.e(TAG, "openCamera:got null hardware camera!"); return null;
} // wrap it with ICamera
return new AndroidCamera(camera);
}
}２、Framework open到jni调用流程
还是open这个接口
代码路径：./frameworks/base/core/java/android/hardware/Camera.java
public static Camera open(int cameraId) { if (!isPermissionGranted()) { return null;
} return new Camera(cameraId);
}//这里的return new Camera就是在下面进行了初始化//填充一些参数
Camera(int cameraId) {
mShutterCallback = null;
mRawImageCallback = null;
mJpegCallback = null;
mPreviewCallback = null;
mPreviewRawDumpCallback = null;
mPostviewCallback = null;
mUsingPreviewAllocation = false;
mZoomListener = null;
Looper looper; if ((looper = Looper.myLooper()) != null) {
mEventHandler = new EventHandler(this, looper);
} else if ((looper = Looper.getMainLooper()) != null) {
mEventHandler = new EventHandler(this, looper);
} else {
mEventHandler = null;
}
String packageName = ActivityThread.currentPackageName();
native_setup(new WeakReference<Camera>(this), cameraId, packageName);
} //这个native_setup就是打开摄像头的关键了jni的调用接口
看到这个native 函数说明这个函数是在jni接口，用的是c++代码实现的，so，我们继续找
private native final void native_setup(Object camera_this, int cameraId,
终于我们在./frameworks/base/core/jni/android_hardware_Camera.cpp
这里面找到了这个函数，然后我们看一下这个函数
static JNINativeMethod camMethods[] = {
{ "getNumberOfCameras", "()I",
(void *)android_hardware_Camera_getNumberOfCameras },
{ "_getCameraInfo", "(ILandroid/hardware/Camera$CameraInfo;)V",
(void*)android_hardware_Camera_getCameraInfo },
{ "native_setup", "(Ljava/lang/Object;ILjava/lang/String;)V",
(void*)android_hardware_Camera_native_setup }, //从这里可以看出来，实现这个函数的真正函数是android_hardware_Camera_native_setup
//所以我们继续找一下这个函数在哪里
{ "native_release", "()V",３. 下面就是打开摄像头的jni代码，app调用open的时候就会调用到这个位置
// connect to camera servicestatic void android_hardware_Camera_native_setup(JNIEnv *env, jobject thiz,
jobject weak_this, jint cameraId, jstring clientPackageName)
{ // Convert jstring to String16
const char16_t *rawClientName = env->GetStringChars(clientPackageName, NULL);
jsize rawClientNameLen = env->GetStringLength(clientPackageName);
String16 clientName(rawClientName, rawClientNameLen);
env->ReleaseStringChars(clientPackageName, rawClientName);
sp<Camera> camera = Camera::connect(cameraId, clientName,
Camera::USE_CALLING_UID);//不相关的代码就不加进来了//sp<Camera> camera = Camera::connect(cameraId, clientName,//这句代码应该是从camera jni连接到camera client的关键 上面有个clientName也说明了这点 .......}３、Android camera Client和camera service调用流程
我只知道spCamera>是一个强指针引用，具体是多厉害百度一下更好
从client的代码里面
frameworks/av/camera/Camera.cpp
sp<Camera> Camera::connect(int cameraId, const String16& clientPackageName,
int clientUid)
{ return CameraBaseT::connect(cameraId, clientPackageName, clientUid); //CameraBaseT::connect这个又是从哪里来的，而且都是c++这可是难倒了我
//不太好办}//在./frameworks/av/include/camera/CameraBase.h:113: //typedef CameraBase<TCam> CameraBaseT;//里面有一个typedef 好了，那我们下一句就应该去找CameraBase<TCam>这个东西//找到在这个位置//./frameworks/av/camera/CameraBase.cpp:94:sp<TCam> CameraBase<TCam, TCamTraits>::connect(int cameraId,sp<TCam> CameraBase<TCam, TCamTraits>::connect(int cameraId,
const String16& clientPackageName,
int clientUid)
{
ALOGV("%s: connect", __FUNCTION__);
sp<TCam> c = new TCam(cameraId);
sp<TCamCallbacks> cl = c;
status_t status = NO_ERROR; //下一步就应该到getCameraService这里来了
//这时候我们就要到cameraservice.java里面去看代码了
const sp<ICameraService>& cs = getCameraService();
if (cs != 0) {
TCamConnectService fnConnectService = TCamTraits::fnConnectService;
status = (cs.get()->*fnConnectService)(cl, cameraId, clientPackageName, clientUid, /*out*/ c->mCamera);
} if (status == OK && c->mCamera != 0) {
c->mCamera->asBinder()->linkToDeath(c);
c->mStatus = NO_ERROR;
} else {
ALOGW("An error occurred while connecting to camera: %d", cameraId);
c.clear();
} return c;
}为了查看它的调用流程，我加了一点日志在connect函数里面，加的日志代码如下
template <typename TCam, typename TCamTraits>
sp<TCam> CameraBase<TCam, TCamTraits>::connect(int cameraId, const String16& clientPackageName,
int clientUid)
{
ALOGD("%s: weiqifa connect 23", __FUNCTION__);
sp<TCam> c = new TCam(cameraId);
sp<TCamCallbacks> cl = c;
status_t status = NO_ERROR; const sp<ICameraService>& cs = getCameraService(); if (cs != 0) {
TCamConnectService fnConnectService = TCamTraits::fnConnectService; status = (cs.get()->*fnConnectService)(cl, cameraId, clientPackageName, clientUid, /*out*/ c->mCamera); ALOGD("%s: weiqifa connect 234", __FUNCTION__);
//ALOGD("cs.get()->*fnConnectService %s: weiqifawe", *(cs.get()->*fnConnectService));
} if (status == OK && c->mCamera != 0) { c->mCamera->asBinder()->linkToDeath(c);
c->mStatus = NO_ERROR;
} else {
ALOGW("An error occurred while connecting to camera: %d", cameraId);
c.clear();
} return c;
}

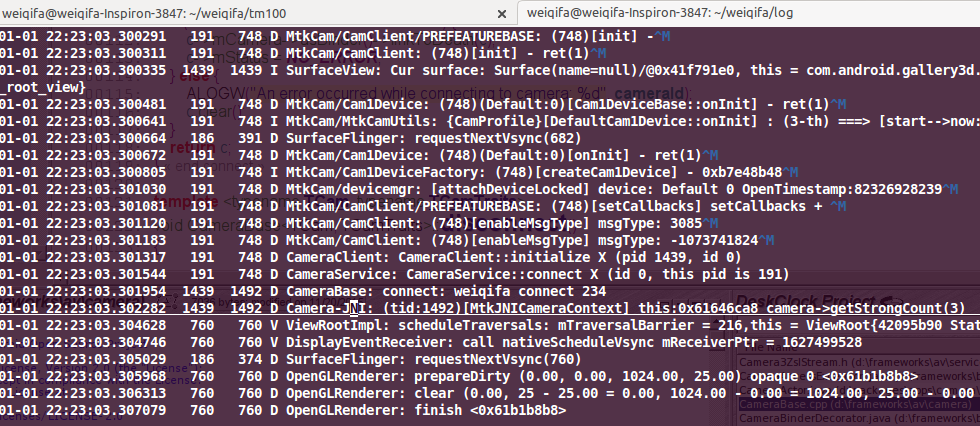

我们可以看到CameraBase: connect: weiqifa connect 234这句话已经打印出来了
然后我们也可以看到CameraService::connect X 打印出来了
然后我们也可以看到CameraClient: CameraClient::initialize X这个也打印出来了
上面的三个日志还是非常重要的
看一下cameraservice.cpp的connect函数，service是服务端，client是客户端，那么客户端的实现在服务端应该有一个对应的函数
status_t CameraService::connect( const sp<ICameraClient>& cameraClient, int cameraId, const String16& clientPackageName, int clientUid,
..... switch(deviceVersion) { case CAMERA_DEVICE_API_VERSION_1_0:
client = new CameraClient(this, cameraClient, //new CameraClient 这个new了一个这个东西，那么CameraClient里面的东西就会被调用了
clientPackageName, cameraId,
facing, callingPid, clientUid, getpid());./frameworks/av/services/camera/libcameraservice/api1/CameraClient.cpp:73:
status_t CameraClient::initialize(camera_module_t *module) { int callingPid = getCallingPid();
status_t res;
//
//看到这里的时候我突然看到了open的函数
//但是有个问题很奇怪这个函数是谁调用了呢？谁让他运行的？？？？？？
LOG1("CameraClient::initialize E (pid %d, id %d)", callingPid, mCameraId);
res = mHardware->initialize(&module->common); //这句还是比较关键的mHardware->initialize就是要获取硬件设备的一些东东啊
//......
LOG1("CameraClient::initialize X (pid %d, id %d)", callingPid, mCameraId); return OK;./frameworks/av/services/camera/libcameraservice/device1/CameraHardwareInterface.h
status_t initialize(hw_module_t *module)
{
ALOGI("Opening camera %s", mName.string()); //通过这几句话去打开设备
int rc = module->methods->open(module, mName.string(),
(hw_device_t **)&mDevice); if (rc != OK) {
ALOGE("Could not open camera %s: %d", mName.string(), rc); return rc;
}
initHalPreviewWindow(); return rc;
} //日志里面也有这样的打印
01-01 22:23:00.999868 191 748 I CameraClient: Opening camera 0我们下一步就是要去找到hw_module_t这个结构体，找到了这个结构体就可以往下走
libcameraservice.so里面调用
void CameraService::onFirstRef()
{
LOG1("CameraService::onFirstRef weiqifa");
BnCameraService::onFirstRef(); if (hw_get_module(CAMERA_HARDWARE_MODULE_ID,
(const hw_module_t **)&mModule) < 0) {
ALOGE("Could not load camera HAL module");
mNumberOfCameras = 0;
} else {
ALOGI("Loaded \"%s\" camera module", mModule->common.name);
mNumberOfCameras = mModule->get_number_of_cameras(); if (mNumberOfCameras > MAX_CAMERAS) {
ALOGE("Number of cameras(%d) > MAX_CAMERAS(%d).",
mNumberOfCameras, MAX_CAMERAS);
mNumberOfCameras = MAX_CAMERAS;
} //for (int i = 0; i < mNumberOfCameras; i++) {
for (int i = 0; i < MAX_CAMERAS; i++) { // workaround for MATV
LOG1("setCameraFree(%d)", i);
setCameraFree(i);
} if (mModule->common.module_api_version >=
CAMERA_MODULE_API_VERSION_2_1) {
mModule->set_callbacks(this);
}
CameraDeviceFactory::registerService(this);
}
}hw_get_module(CAMERA_HARDWARE_MODULE_ID这个是加载硬件hardware层对应的东东，具体可以查看链接hw_get_module获取硬件模块
看一下CAMERA_HARDWARE_MODULE_ID
hardware/libhardware/include/hardware/camera_common.h:35:#define CAMERA_HARDWARE_MODULE_ID "camera"
看一下我们打印出来的日志
weiqifa@weiqifa-Inspiron-3847:~/weiqifa/log$ grep -wrn "CameraService::onFirstRef" ./ ./mobilelog/APLog_2010_0105_214945/main_log.boot:922:01-05 22:49:08.208839 194 194 D CameraService: CameraService::onFirstRef weiqifa weiqifa@weiqifa-Inspiron-3847:~/weiqifa/log$
４、Android camera Hardware调用
hardware肯定是属于平台的特性，所以我们这里就要找到平台特性的东西了。
从libcameraservice下来
if (hw_get_module(CAMERA_HARDWARE_MODULE_ID,
(const hw_module_t **)&mModule) < 0) {
ALOGE("Could not load camera HAL module");
mNumberOfCameras = 0;
}hw_get_module这个东西就是获取hardware下面的内容的东西。具体的可以看一下链接
hw_get_module
然后我们就找到了这个地方
./mediatek/hardware/mtkcam/module/module.h
static
camera_moduleget_camera_module()
{
camera_module module = { common: { tag: HARDWARE_MODULE_TAG,
module_api_version: CAMERA_MODULE_API_VERSION_2_1,
hal_api_version: HARDWARE_HAL_API_VERSION,
id: CAMERA_HARDWARE_MODULE_ID,
name: "MediaTek Camera Module",
author: "MediaTek",
methods: get_module_methods(),
dso: NULL,
reserved: {0},
},
get_number_of_cameras: get_number_of_cameras,
get_camera_info: get_camera_info,
set_callbacks: set_callbacks,
};
return module;}里面的methods: get_module_methods（）这个就是我们hardware的open函数
open_device(hw_module_t const* module, const char* name, hw_device_t** device)
{ return NSCam::getCamDeviceManager()->open(module, name, device);
}statichw_module_methods_t*
get_module_methods()
{ static
hw_module_methods_t
_methods =
{
open: open_device
}; return &_methods;
}open_device就会找到NScam：：getCamDeviceManager()->open
NSCam这个是一个命名空间，我看了网上的解释，更像是类引用，后面我再跟进去找到open的地方
./mediatek/hardware/mtkcam/devicemgr/CamDeviceManagerBase.cpp
status_t
CamDeviceManagerBase::
open(
hw_module_t const* module,
char const* name,
hw_device_t** device
)
{
RWLock::AutoWLock _l(mRWLock); //
return openDeviceLocked(module, name, device);
}这里调用到了openDeviceLocked 我们找到这个地方
./mediatek/hardware/mtkcam/devicemgr/CamDeviceManagerBase.openDevice.cpp
/******************************************************************************
*
******************************************************************************/status_t
CamDeviceManagerBase::
openDeviceLocked(
hw_module_t const* module,
char const* name,
hw_device_t** device
)
{
status_t status = OK;
sp<ICamDevice> pDevice = NULL;
int32_t const i4OpenId = (name != NULL) ? ::atoi(name) : -1; //
String8 const s8ClientAppMode = queryClientAppMode();
uint32_t const version = determineOpenDeviceVersionLocked(s8ClientAppMode, i4OpenId); //
MY_LOGD("+ mOpenMap.size:%d mEnumMap.size:%d", mOpenMap.size(), mEnumMap.size()); //
// [1] check to see whether it's ready to open.
if ( OK != (status = validateOpenLocked(i4OpenId)) )
{ return status;
} //
// [2] get platform
IPlatform*const pPlatform = getPlatform(); if ( ! pPlatform )
{
MY_LOGE("No Platform"); return NAME_NOT_FOUND;
} //
// [3] create device based on device version.
if ( version == CAMERA_DEVICE_API_VERSION_1_0 )
{
pDevice = pPlatform->createCam1Device(s8ClientAppMode.string(), i4OpenId);
} else
if ( version >= CAMERA_DEVICE_API_VERSION_3_0 )
{
MY_LOGE("Unsupported version:0x%x >= CAMERA_DEVICE_API_VERSION_3_0", version); return UNKNOWN_ERROR;
} else
{
MY_LOGE("Unsupported version:0x%x", version); return UNKNOWN_ERROR;
} //
if ( pDevice == 0 )
{
MY_LOGE("device creation failure"); return NO_MEMORY;
} //
// [4] open device successfully.
{
*device = const_cast<hw_device_t*>(pDevice->get_hw_device()); //
pDevice->set_hw_module(module);
pDevice->set_module_callbacks(mpModuleCallbacks);
pDevice->setDeviceManager(this); //
attachDeviceLocked(pDevice);
} //
return OK;
}
